Excavator SY 215
Back to Customized machine
Details

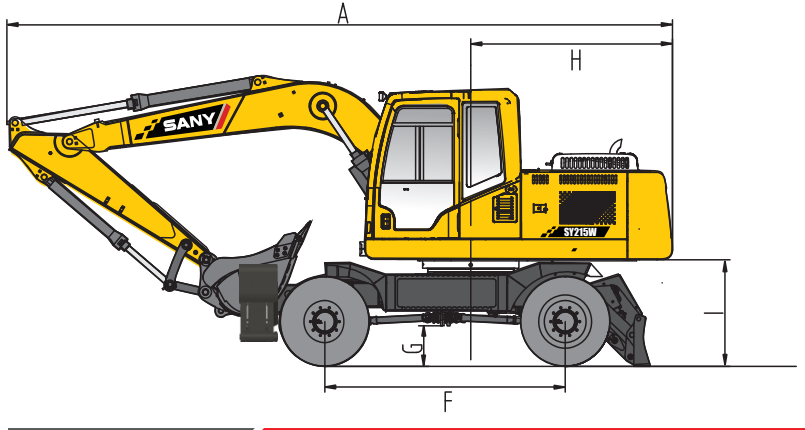

Excavator SY 215


Length(Shipping：9680mm

Width：2980mm

Height(Shipping)：3440mm

Top Width：2875mm

Total Height(Cab Top)：3075mm

Track show Height：600mm

Track Width：2380mm

Min Ground clearance：440mm

Rear Swing Radius：2900mm

Track Grounding Length：3445mm

Track Length：4250mm

Operating Weight:21900kg

Bucket capacity：1.1m³

Powder：118/2000kW/rpm

Rated Speed(High/Low)：5.4/3.3km/h

Swing Speed：11rpm

Climbing Ability：70%/35°

Ground Pressure：47.4kPa

Bucket Digging Force：138kN

Bucket Arm Digging Force：103kN

Maximum Digging Depth：9600mm

Maximum Vertical Digging Depth：6255mm

Maximum Digging Radius：10280mm

Min Swing Radius：3730mm
